The Zhaohe NMP and waste heat recovery system can meet the requirements of temperature, cleanliness, NMP concentration, and pressure in the drying oven for lithium battery coating process.
Reasonable system design, high installation quality, and low operating energy consumption;
The product meets the European emission standard of<1mg/m3;
New product processing technology, heat recovery efficiency ≥ 90%;
Experienced in on-site construction, with a cumulative implementation of over 600 systems;
System cloud platform support, timely feedback on customer device operation status;
Add emergency exhaust system and blowing mode to ensure the safe operation of the system.

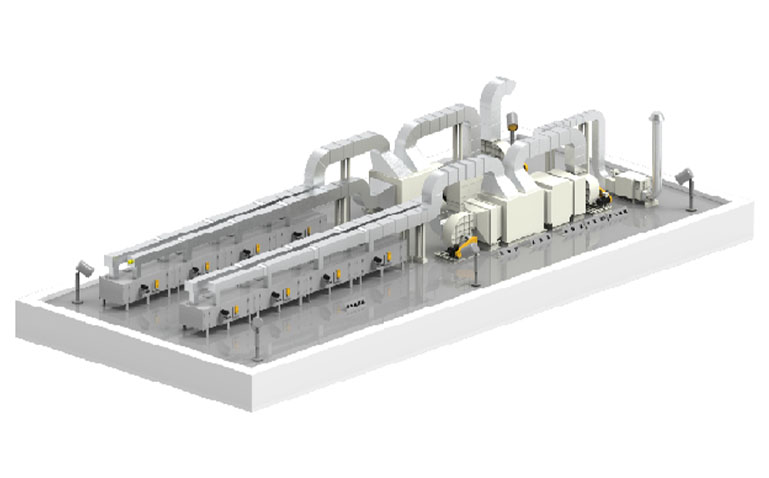

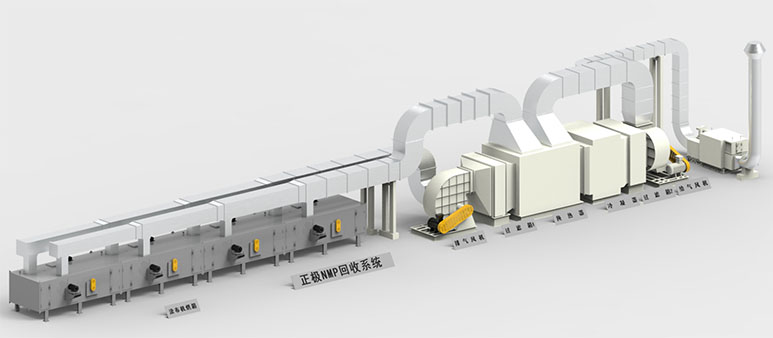

Cathode: Through heat recovery, condensation, and filtration, the goal is to achieve energy conservation and consumption reduction in the air supply and exhaust system, NMP treatment, and gas purification. Meet the requirements for temperature, cleanliness, NMP concentration, and pressure inside the oven during the coating and drying process of lithium battery production. By strictly controlling the airtightness of pipelines and equipment, the goal of preventing NMP leakage can be achieved.

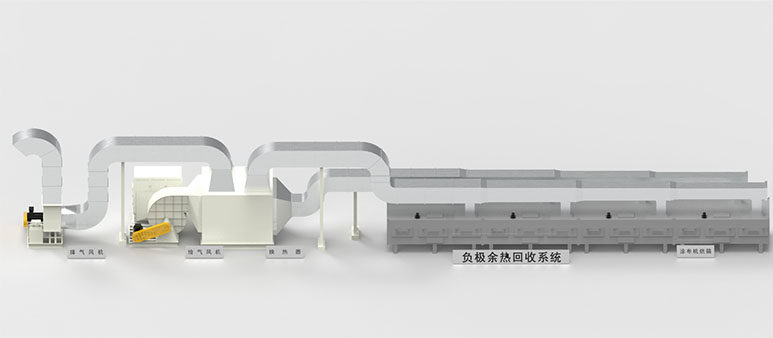

Anode: Through heat recovery, dehumidification, and filtration, the goal is to achieve energy conservation, constant dehumidification, and gas purification in the air supply and exhaust system. Meet the requirements for temperature, cleanliness, moisture content, and pressure inside the oven during the coating and drying processes in the production of lithium battery anodes.

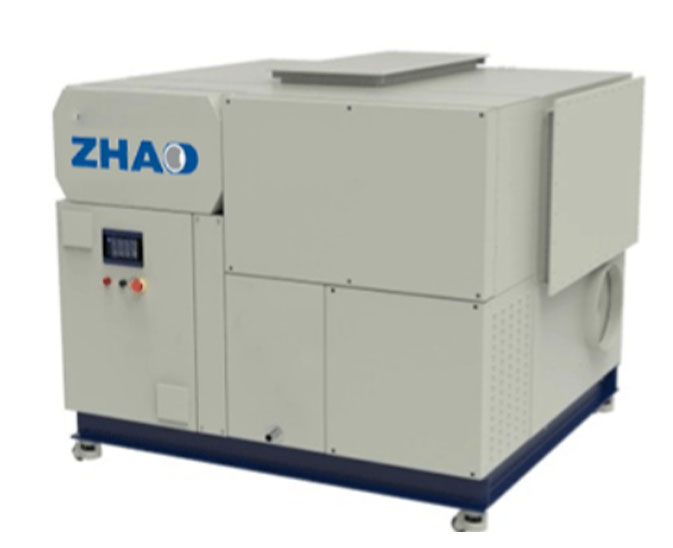

Self owned patented technology, industry first, purification rate>99% (actual test result example: inlet cin=10~40ppm, purification rate ≥ 99.8%);
Processing air volume: 3.500CMH, can correspond to a space of 600-1200m3, with a space ventilation rate of 3-6 times;
Equipment power: 10.5kw; Equipment dimensions: 2140x1964x1736;
Cooling water usage: 650kg/h (7/12 ℃);

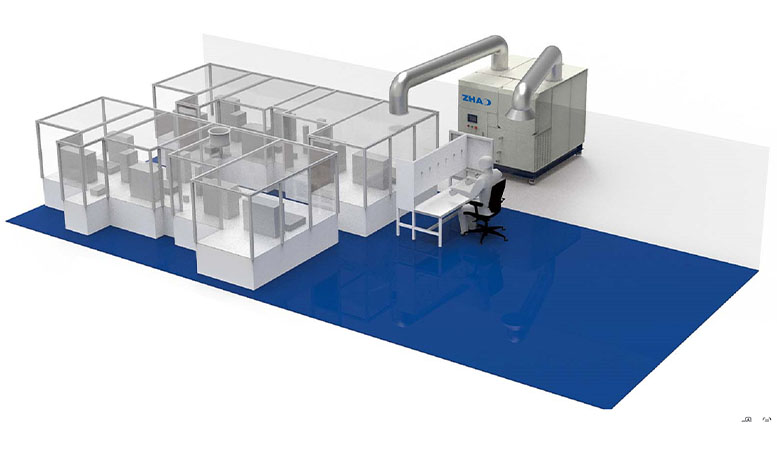

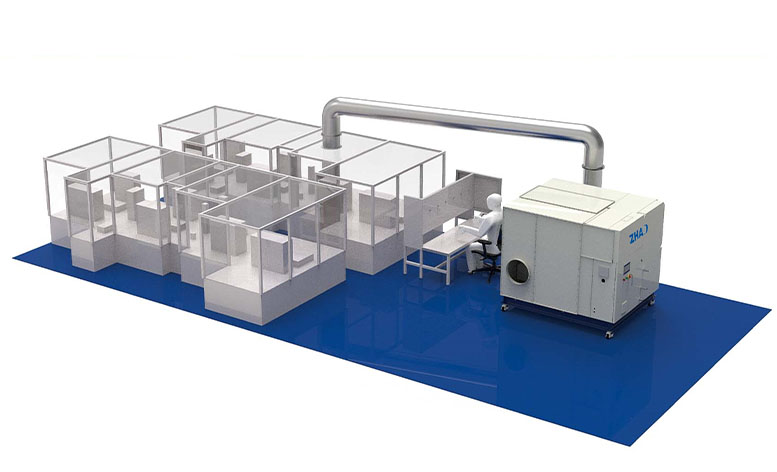

Integrated and movable purification equipment, with flexible selection of installation locations (line side or outdoor);
Easy to install (only one air duct, power supply, and cooling water are needed for use);
Easy to operate, high purification efficiency (>99%), low operating costs, no generation of any "three wastes", and simple maintenance.
